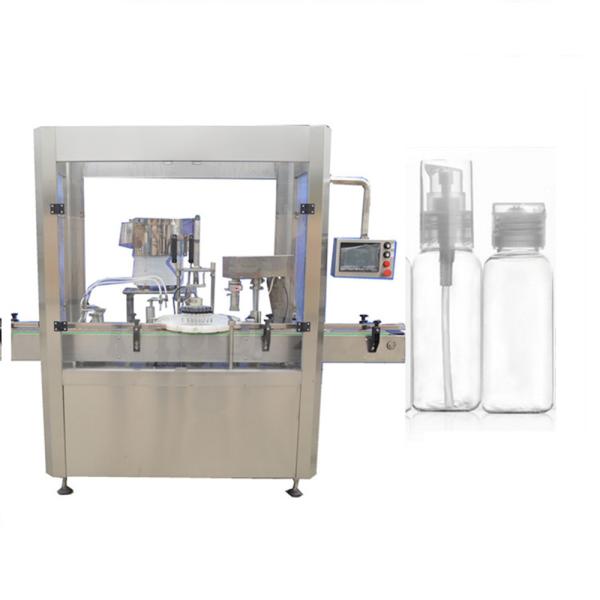

Automatic Air Freshing Perfume Scent Spray Filling Capping Machine
Main character of spray filling
1.PLC control
2.No bottle, no filling
3.CE certificate+GMP standard
4.Full stainless steel machine
5.High precise filling
Performance Features
1. Good brand PLC control system and color touch screen,
2. Stainless steel piston pump quantitative filling,
3. Pneumatic adding cap and elevating screw capping,
4. Machine body is made of 304 stainless steel, which is full
compliance with GMP requirements,
5. With accurate filling measurement, smooth screw capping and easy
operation.
Technical Parameter
| Model | YB-P2 | YB-P4 |
| Filling head number | 2 | 4 |
| Adding head number | 1 | 1 |
| Capping head number | 1 | 1 |
| Filling volume | 20-200ml | 20-200ml |
| Capacity | 10-35bottles/min | 20-50bottles/min |
| Filling accurancy | ≤±1% | ≤±1% |
| Pass rate | ≥98% | ≥98% |
| Power supply | 1Ph.220V,50/60Hz | 1Ph.220V,50/60Hz |
| Total power | 1.5KW | 1.6KW |
| Net weight | 550kg | 550kg |
| Dimension | L2100xW1600xH2000mm | L2200xW1600xH2000mm |
Warm Tips
1. We could produce different machines due to your capacity
request.
2. If your filling volume is out of the range of machine, we could
customize for you.
Detailed Images
Bottle rotary table (customized due to diffrent bottles)
Screw capping head
FAQ
Q: Are you a factory or trading company?
A:BY Machinery is a factory who has rich experiences in food,
drinks , medical and cosmetic industrials, we offer OEM services in
the last over 10 years, and now we have our own brands and own
designed machines for sale!
Q: How long need to ship the machines after order?
A: All machines can be ready and shipped in 15 or 30 days after
order!
Q: What's the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and
balanced before shipment.
Q: Why should you choose our packing and filling machine ?
A:We have been specialized in filling and packing machine for more
then ten years,nd until now have exported mahcines to more than 30
countries
Q: Can you provide after-sale service ?
A:Yes ,sure.We have engineers available to service overseas .
Q: Can i visit your factory and send team for learning and inspect
?
A: Yes,sure.We will do our best to teaching you how to use the
machine.
Q: What is our advantages?
A: 1.Competitive price
2. Excellent technical support
3.Best service
